Strands FOR9T DRAGON DRIVE 9″ DRIVING LIGHT (E-approved)

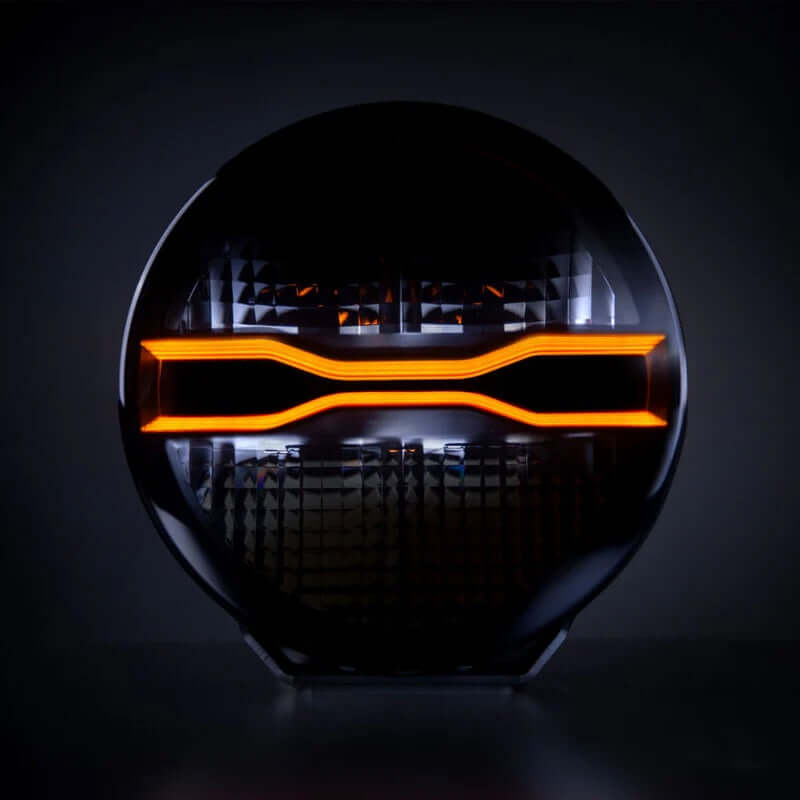

The new E-approved Strands Dragon Drive has been updated with E-Mode and Xperience Mode , giving you perfectly customized lighting. With Xperience Mode, the LED headlight achieves an output of 9300 actual lumens and a range of 600 meters . E-Mode is E-approved according to R148/149 with reference number 20. This is mandatory in many European countries, but is also perfect for driving in poor weather conditions. The customized output reduces glare from rain, snow, or fog. By switching modes, optimal lighting is guaranteed everywhere. The FOR9T dual-tone position lights in white and amber offer a modern look and superior performance, with flowing lines standing out. When not in use, the position lights are dim and invisible against the lens. Thanks to high-quality aluminum, polycarbonate, and an IP67 protection rating , you can be sure that the Dragon Drive LED headlight will be a long-lasting addition to your vehicle. Installation is done with a DT-4 connector.

Technical data:

• Voltage: 10–48 V DC
• Theoretical power: 145 W
• Consumption: E-mode: 30 W / Xperience mode: 135 W
• Functions: High beam, white position light, yellow position light, logo lighting
• Consumption specific function: White position light: 4.9 W, yellow position light: 5 W
• Theoretical lumen value: 14000 lm
• Actual lumen value: E-mode: 3000 lm / Xperience mode: 9300 lm

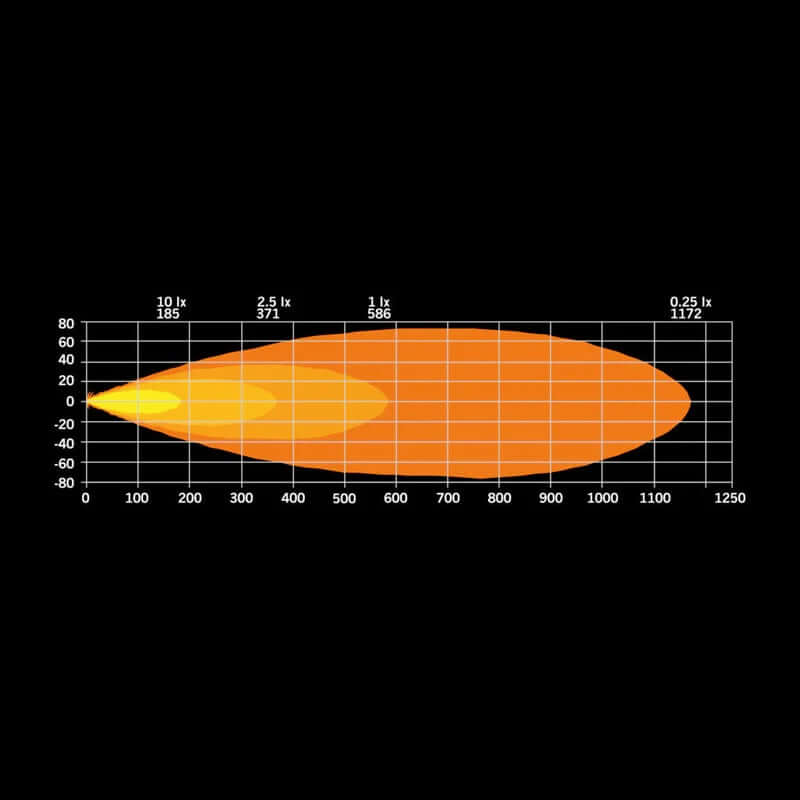

• 1 Lux at: E mode: 305 m / Xperience mode: 600 m
• Color temperature: 6500 K
• Light distribution: Extended light
• Beam angle: 17.4°
• Connector: DT-4PIN
• Cable length: 550 mm
• Case color: Black
• Lens color: Clear/Dark
• Color LEDs: White and Amber
• Bracket material: stainless steel
• Housing/Chassis Material: Aluminum
• Lens material: polycarbonate

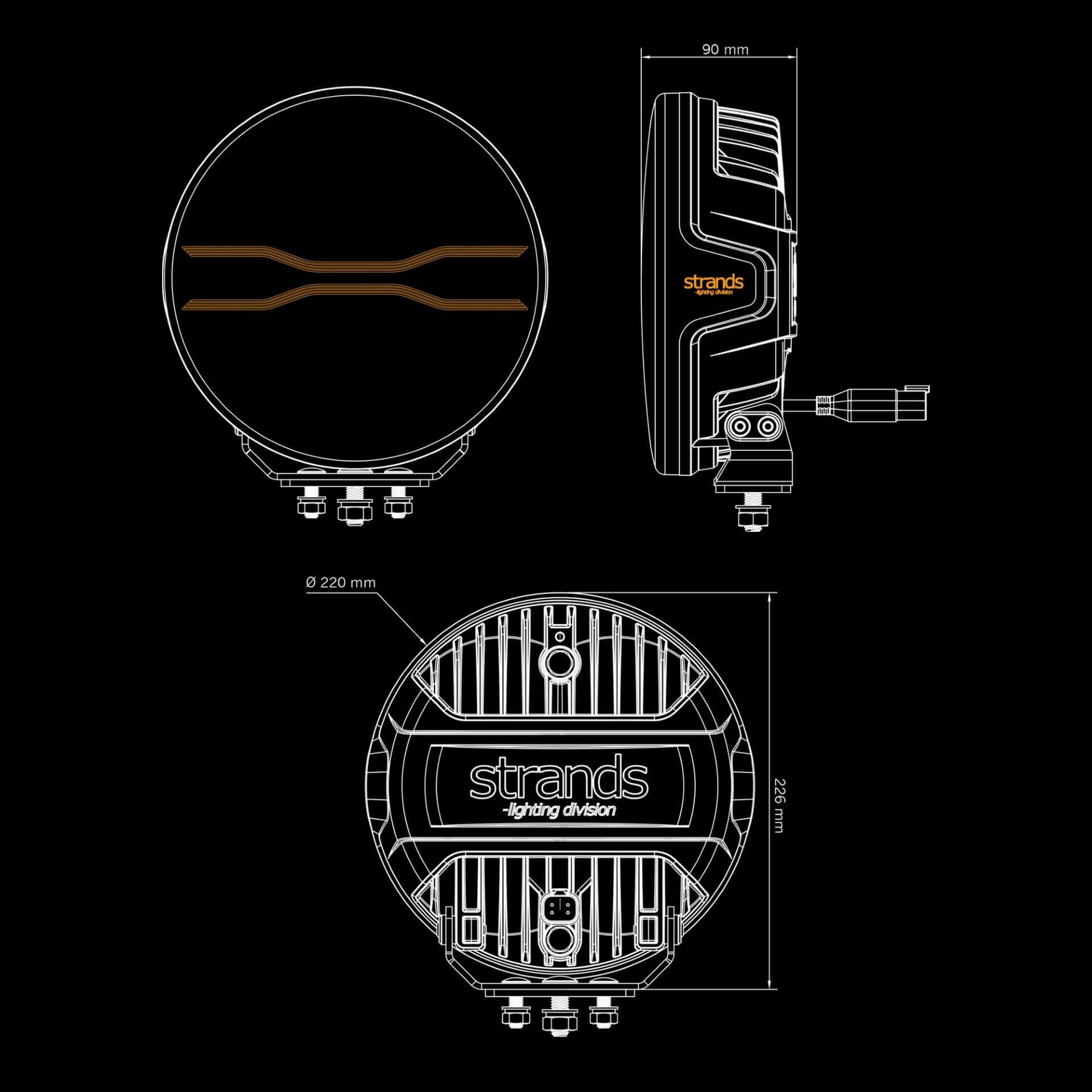

• Length: 220 mm
• Depth: 90 mm
• Height: 220 mm
• Height including bracket: 226 mm
• Diameter: 220 mm
• Weight: 2.3 kg
• IP class: IP67
• Operating temperature: -40 to +65 °C
• E-approval: Yes
• According to regulation: ECE R148, R149
• Reference number: 20
• EMC: ECE R10

Installation instructions:

• Black cable: - Negative
• Red cable: + high beam
• White cable: + White position light (positive)
• Yellow cable: + Yellow position light (positive)

• Green cable: + E-mode (loose cable)

Scope of delivery:

• 1 x headlight
• Mounting material (bracket, screws, washers & bolts)
