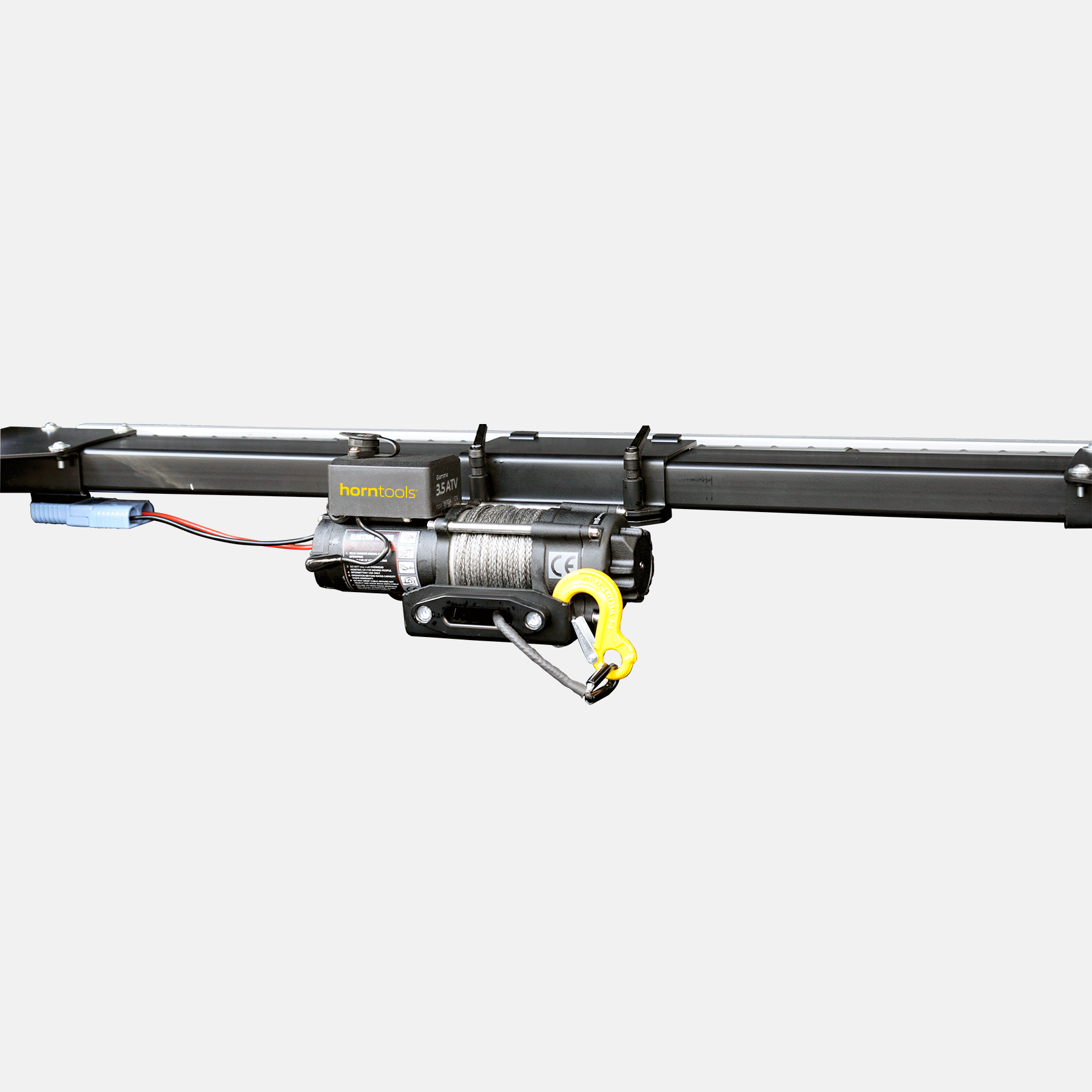

Rear Winch System Pick-Up Between with Synthetic Rope

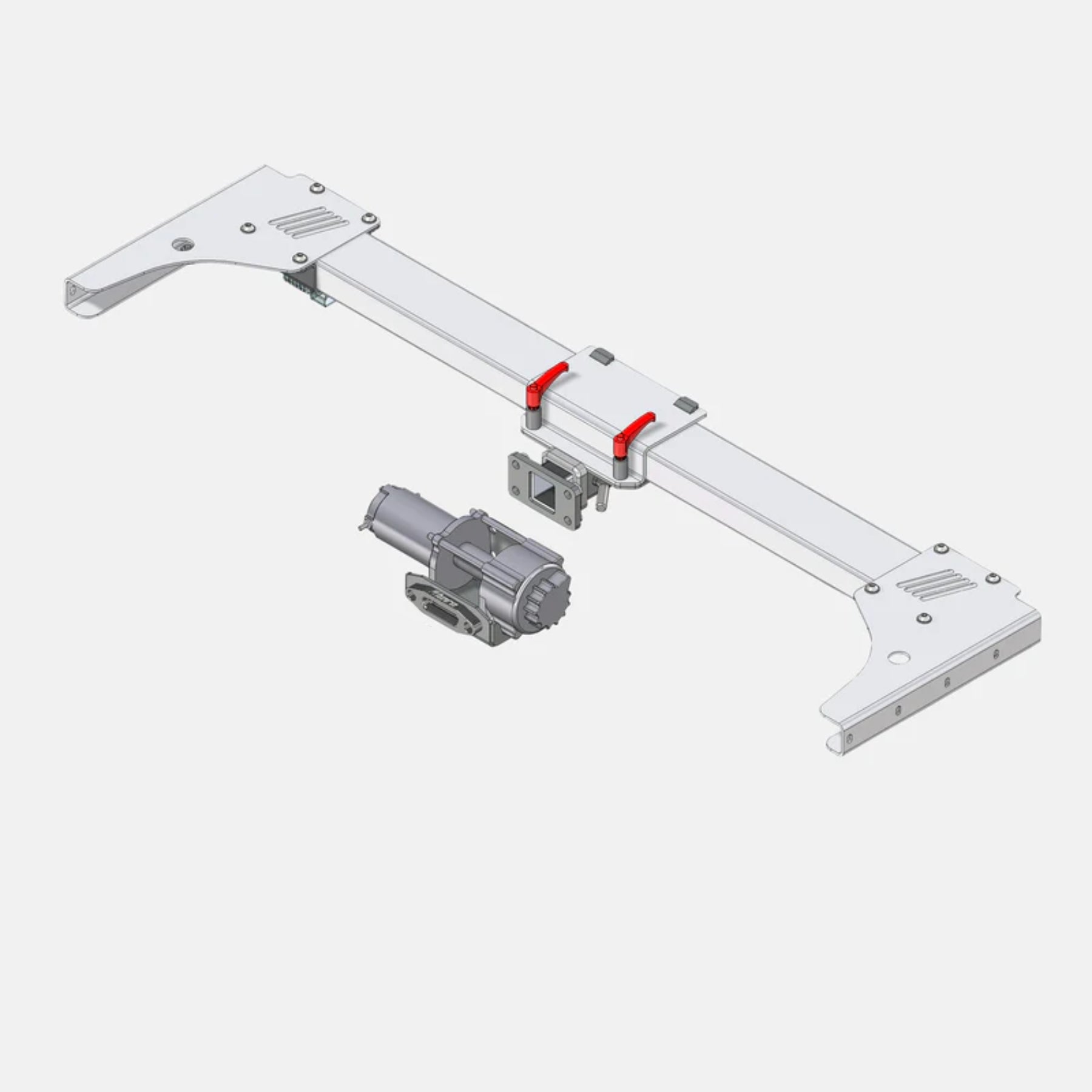

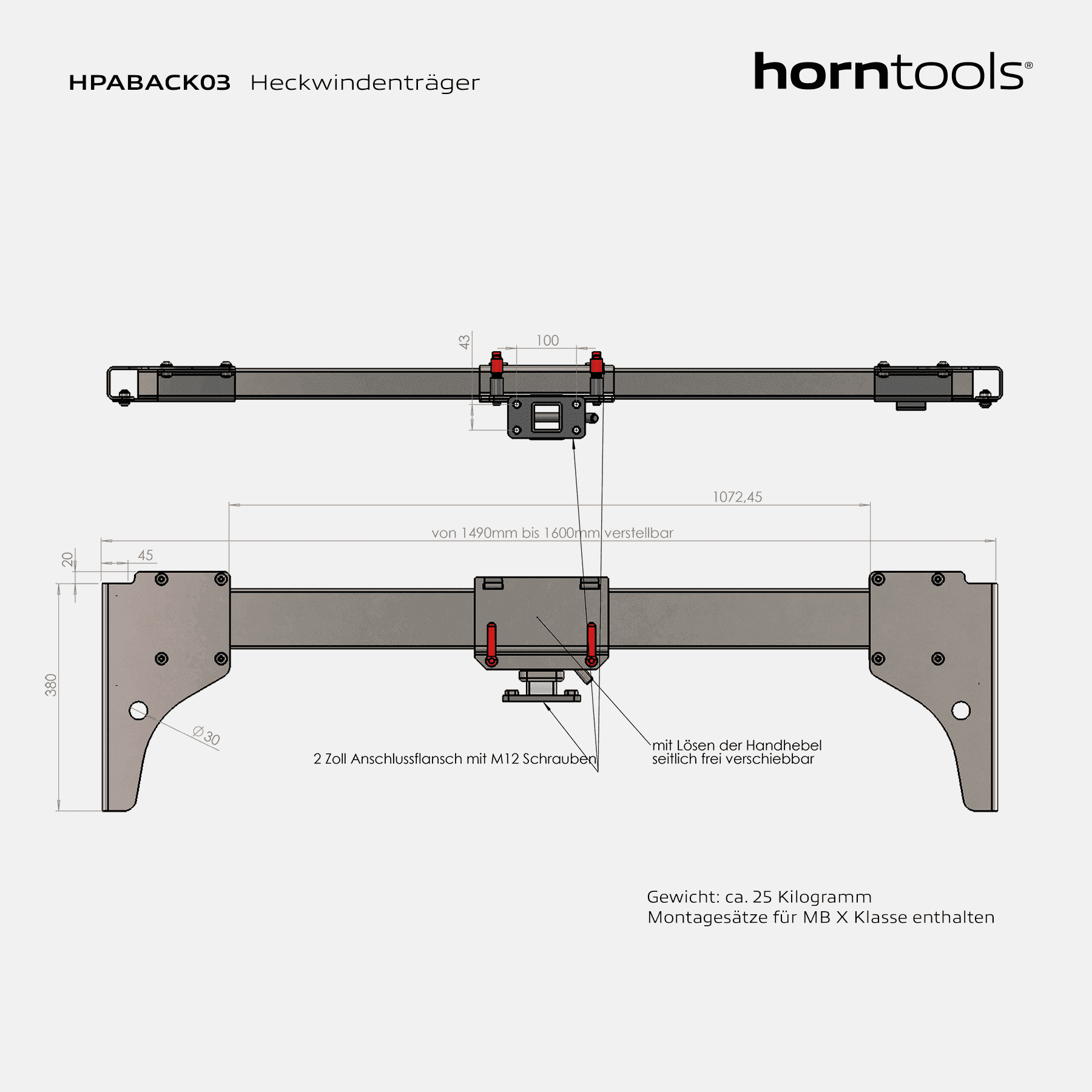

Rear winch system

The rear winch carrier from horntools fits perfectly into your loading area. It can also be used if a drawer, hardtop or load compartment cover is installed. If rails are already installed, you can integrate the rear winch carrier. Depending on the equipment of the vehicle, however, retrofit rails may be required.

Please note: The rear winch system is not compatible with electric roll-top loading area covers.

Please note that cut-outs must be made to fit the airline rails on flatbeds with a load compartment tray. If you want to save yourself time and work, we recommend removing the tray.

Features:

• Motor IP67 sealed by groove with sealing ring
• Freewheel lever
• Stainless steel cross struts
• Reinforced rope drum
• Internal drum brake with 3 brake shoes
• Powder-coated die-cast aluminum housing Motor/gearbox
• Removable control unit (so that the control unit can be installed anywhere)
• Reinforced, powder-coated contactor housing made from deep-drawn sheet metal


Technical data:

30m version:

Despite its compact size, the Gamma 3.5 cable winch generates a pulling force of 1.6 tons, making it ideal for hunting.

• Gearbox: 3-stage planetary gearbox
• Max. Pulling force: 1600 kg
• Max. Pulling speed: 2.8 m/min*
• Winch weight: 7.9 kg
• Motor type: Permament magnet**
• Reduction ratio: 170:1
• Max. Power consumption: 160 amps
• Voltage: 12 V
• Rope (∅ x length): 5 mm x 30 m
• Drum (∅ x length): 37 x 80 mm
• Overall size (LxWxH): 329 x 116 x 165 mm

80m variant:

• The Alpha 9.5 Quick Compact cable winch included in the set was specially developed for users with limited space. Despite its compact design, the cable winch has a pulling force of 4.3 tons.

  The special feature of the Quick models in the Alpha series is the extremely high maximum pulling speed of 15 m/min (measured without load). This allows you to pull your loads or other objects onto the loading area even faster.

• Gearbox: 3-stage planetary gearbox
• Max. Pulling force: 1400 kg (due to 4 mm plastic rope)
• Max. Pulling speed: 15m/min*
• Winch weight: 27 kg
• Motor type: Series Wound**
• Reduction ratio: 110:1
• Max. Power consumption: 600 amps
• Voltage: 12 V
• Rope (∅ x length): 4 mm x 30 m
• Drum (∅ x length): 63 x1 20 mm
• Overall size (LxWxH): 471 x 160 x 250 mm

  *measured without load

  ** Magnetic field is generated by means of a permanent magnet

Scope of delivery:

• Rear winch carrier
• Mounting plate
• Cable set
• Cable winch
• Aluminum auxiliary window
• Fixing screws
• Plastic cable with hook
• Cable remote control
• Radio remote control
• Operating instructions

Caution:

Please note that our cable winches may only be used for ground pulling and are not suitable for lifting! The operating instructions for the cable winch must be read in full before use and must be strictly adhered to, otherwise there is a risk of injury! The carrier has been designed for a load of up to two tons. This durability has been successfully tested by our team. However, we have set the load of the crossbar at 300 kg, as there is a risk of damage to your vehicle if the load is higher.

Warranty:

We grant a 5-year warranty on the gearbox and drum of the cable winch in compliance with the warranty and service regulations. Please complete our warranty application in our user manual and return it to us by e-mail. The warranty is only valid for private users, not for commercial use and only if the operating instructions are observed.

Please note:

The user manual and your specialist dealer will provide you with all the important information about handling your new cable winch. This winch may generate more noise.
