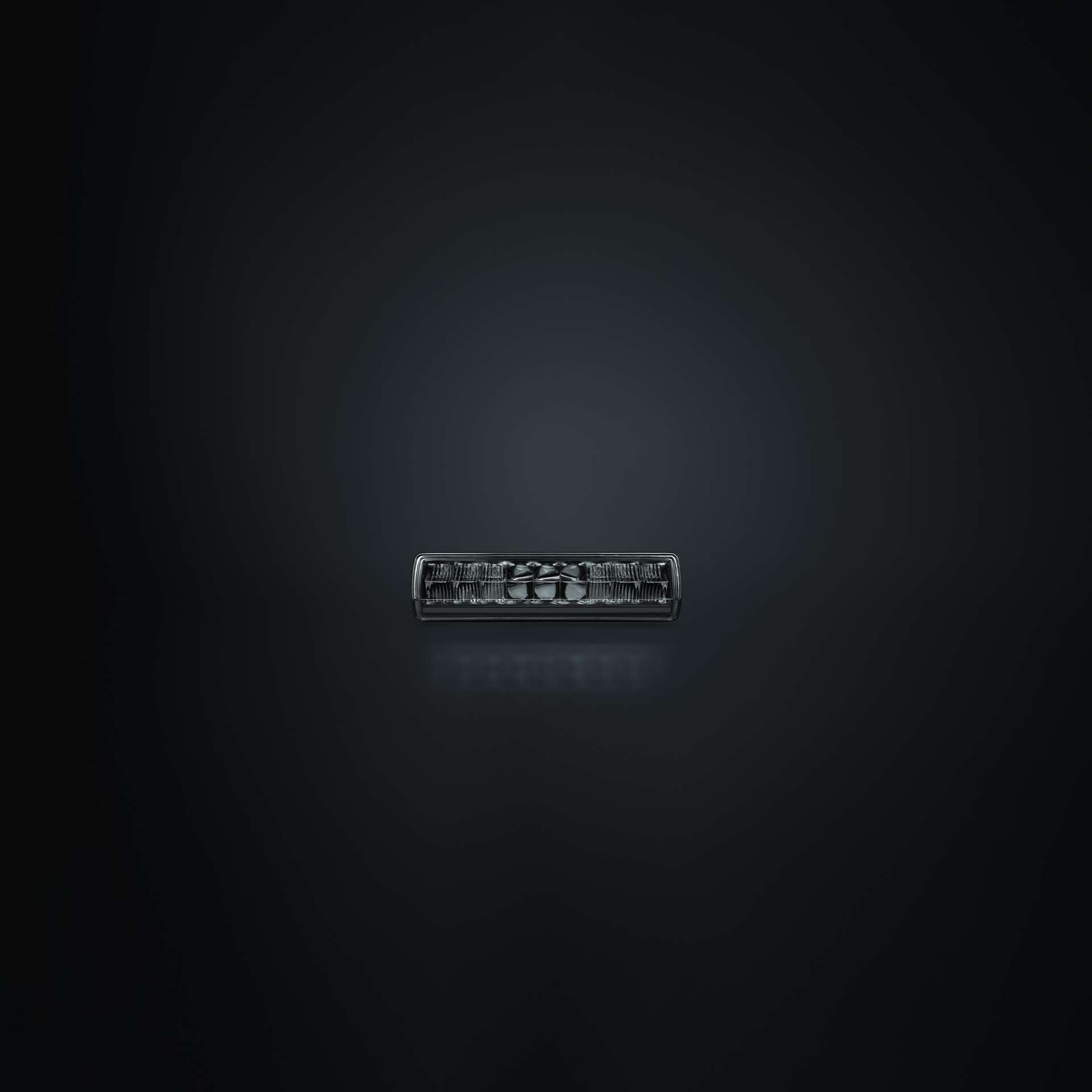

Strands SKYLORD EXP LED BAR 10″

New
10-32 V
82 W
7800 lm
68/69K
Sale price419,90 €

Tax included. Free Shipping from €300*

Delivery early October
Only a few items left

SKU: 902000S1 GTIN: 7323030209506

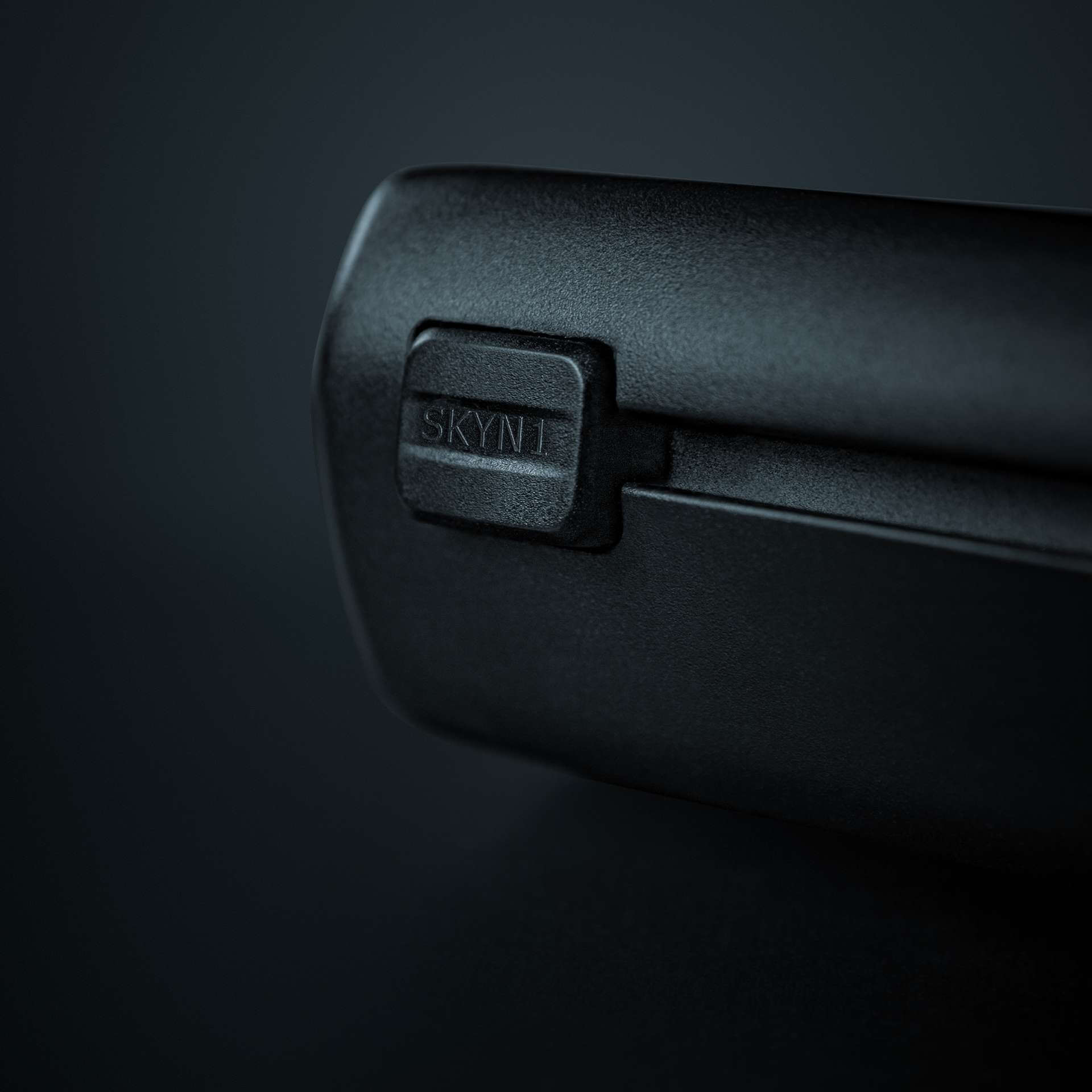

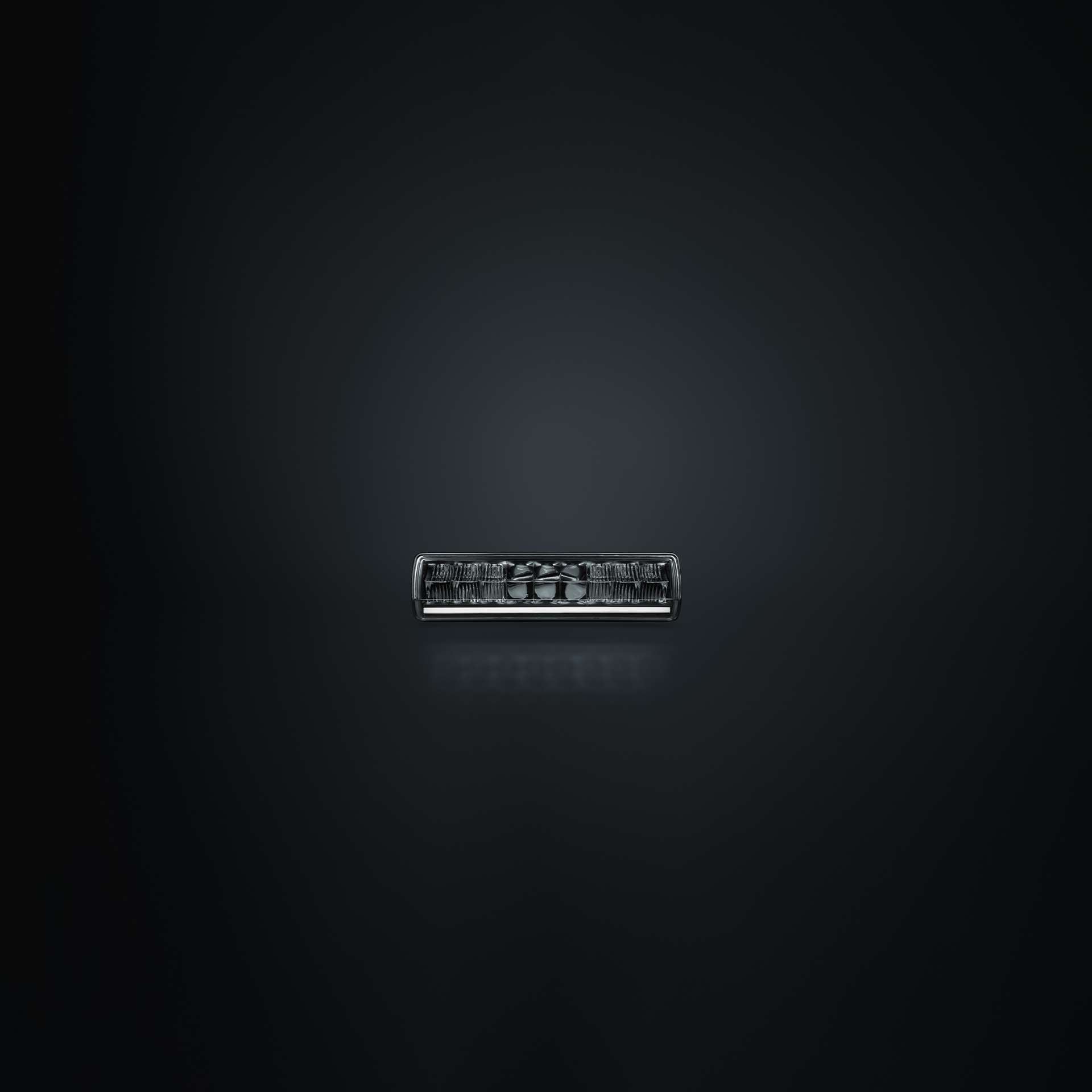

The Strands Skylord EXP LED Bar 10″ is part of the SKYN1 EXP series and was developed for drivers who expect maximum performance, easy installation and seamless wireless control.

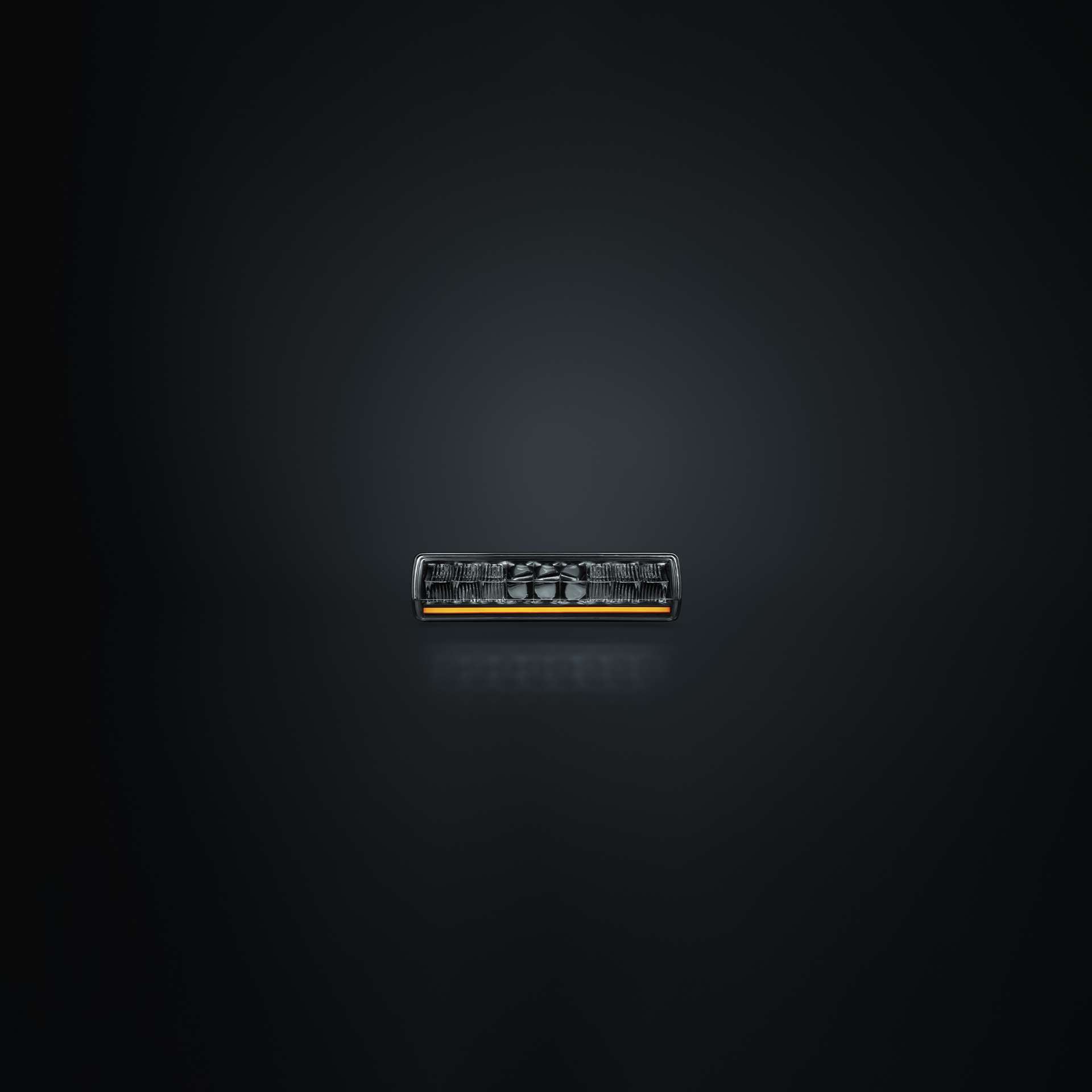

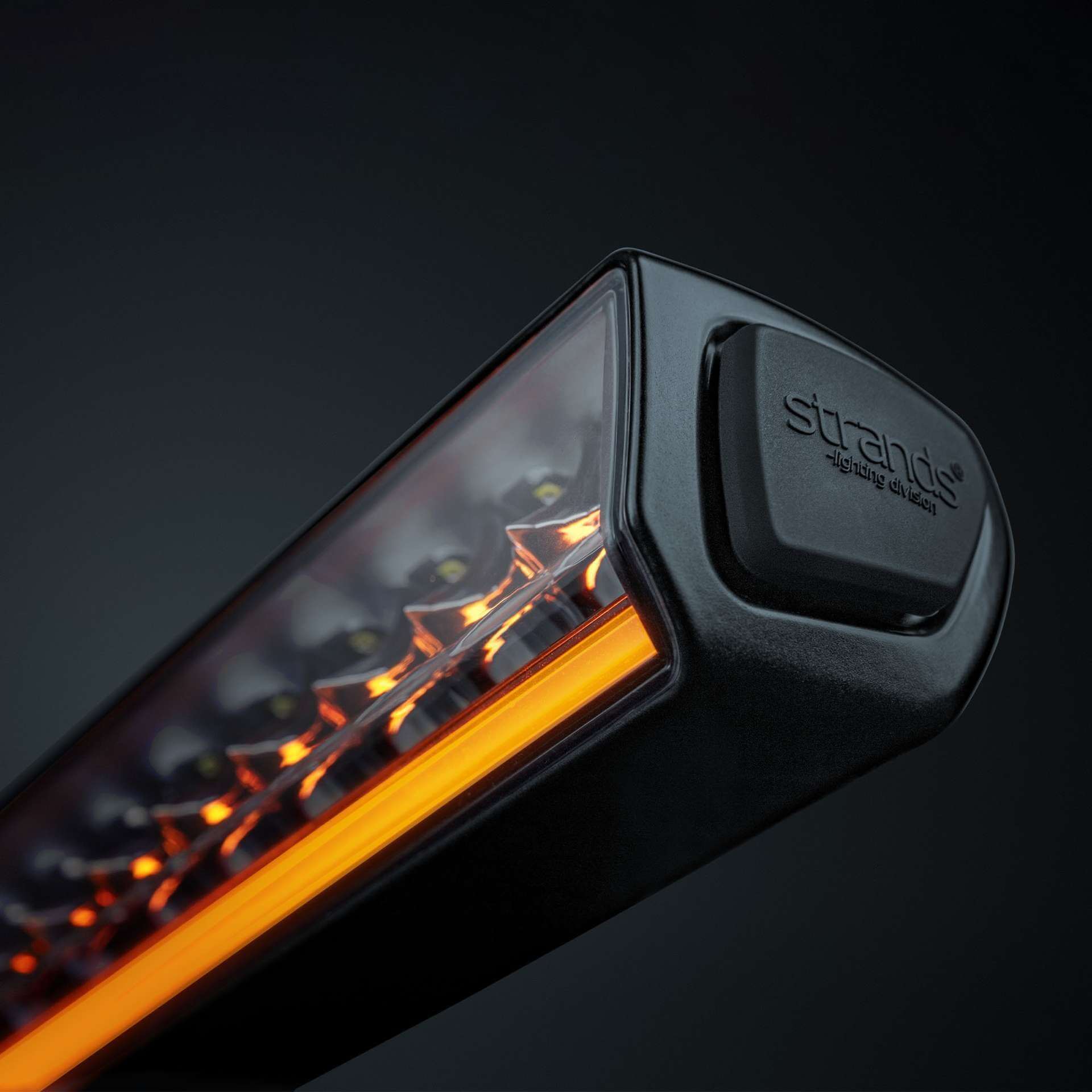

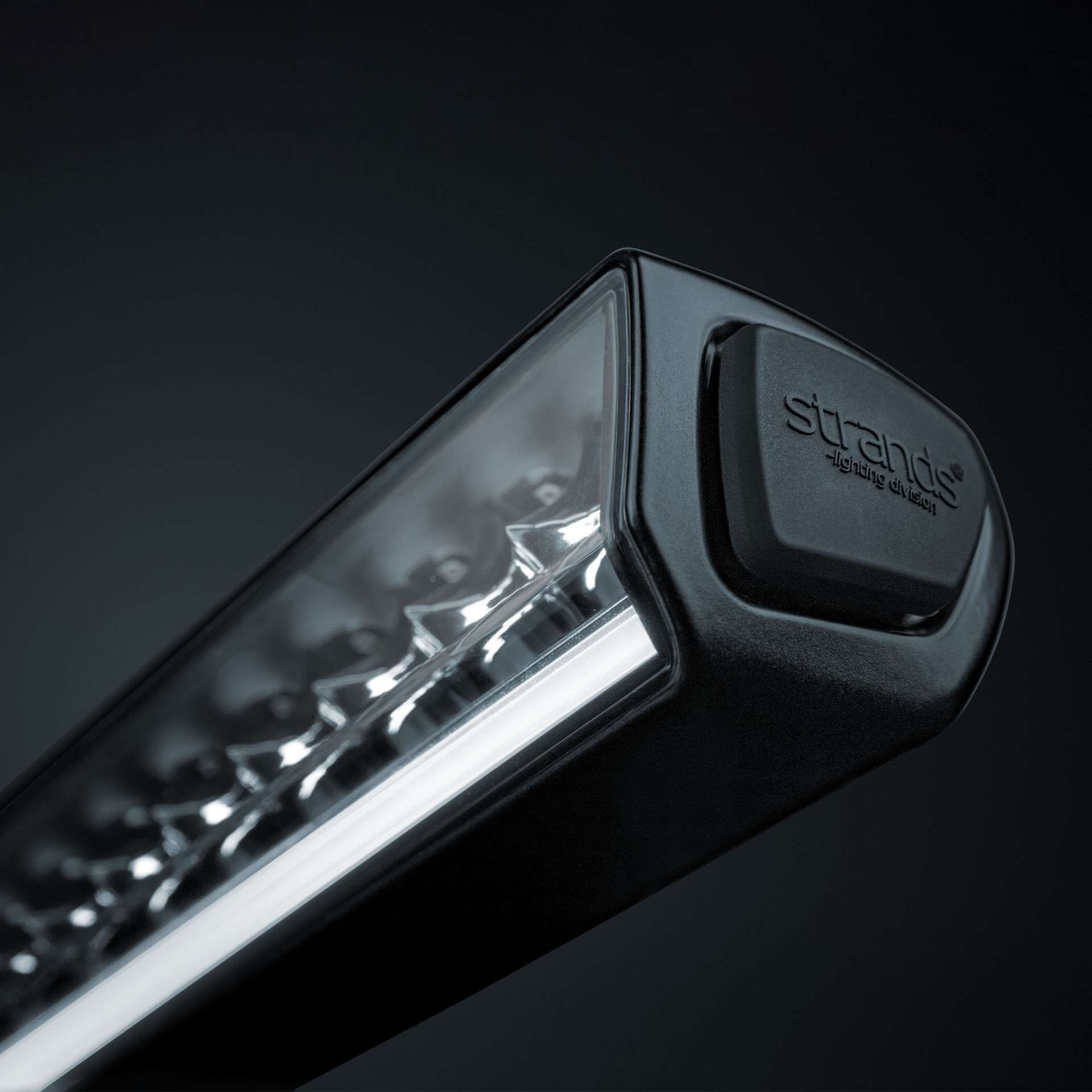

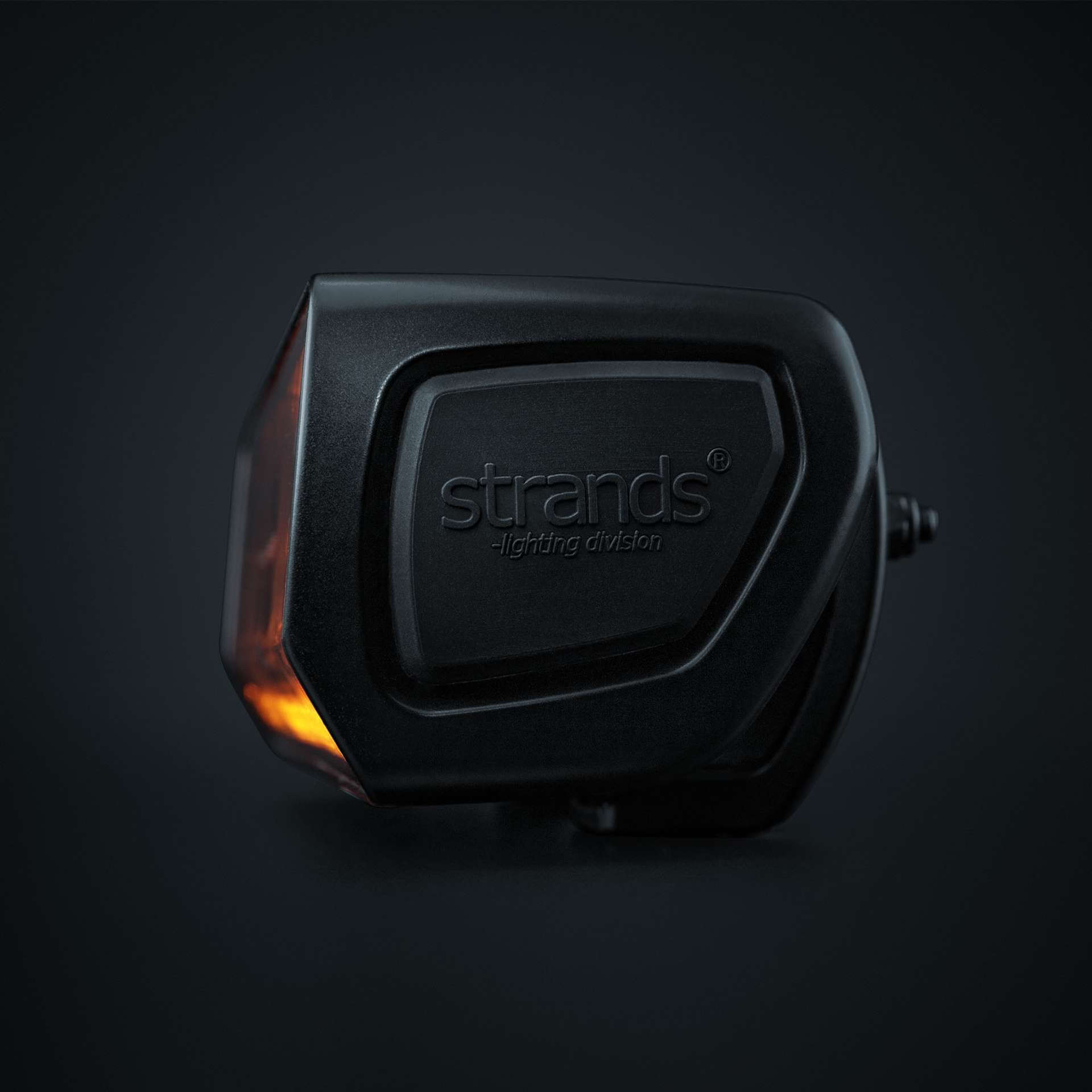

With 7,800 lumens of actual light output and a range of up to 542 metres (1 lux), the LED bar delivers powerful long-range light. Integrated white and amber position lights, plus an Xperience mode with E-approval, extend its range of functions.

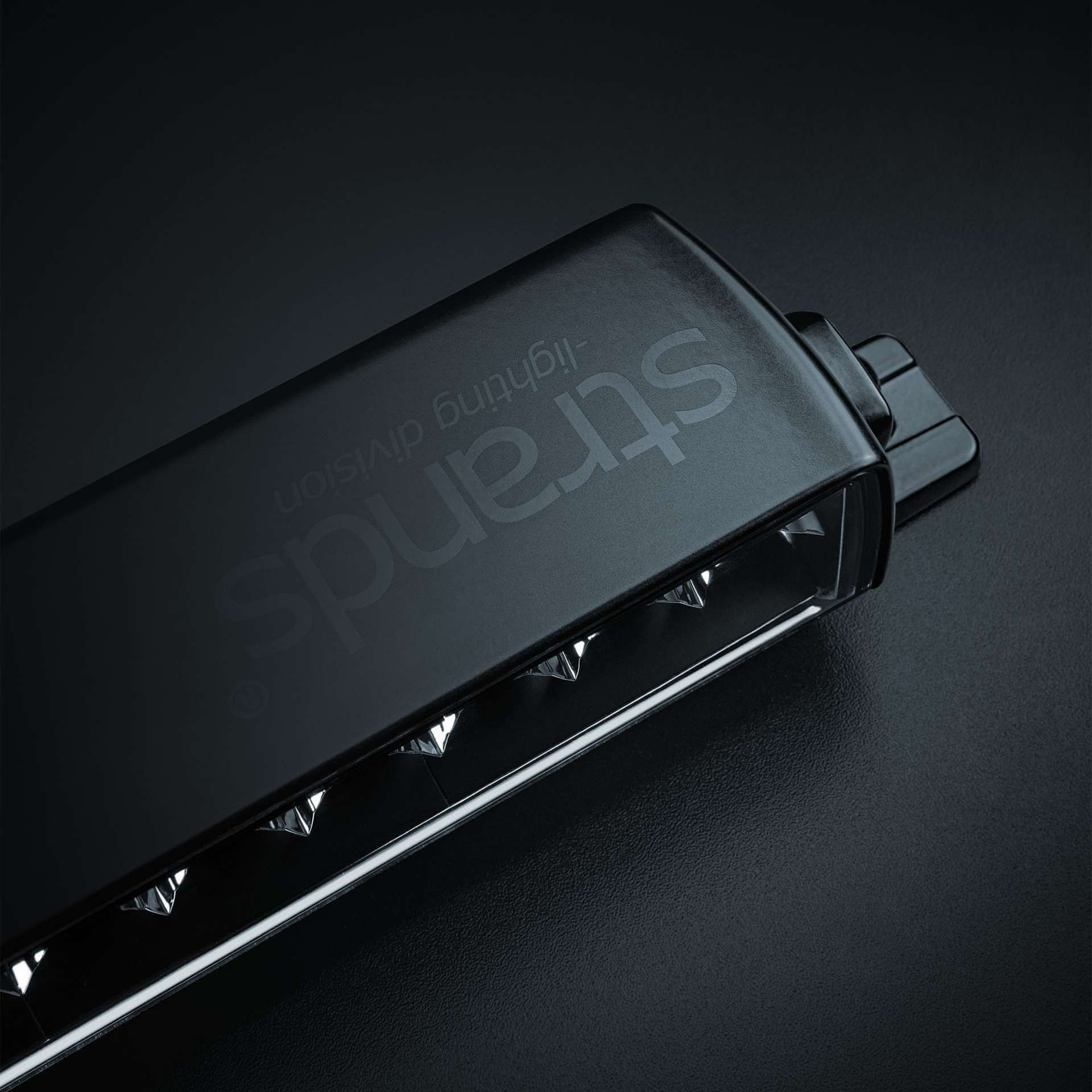

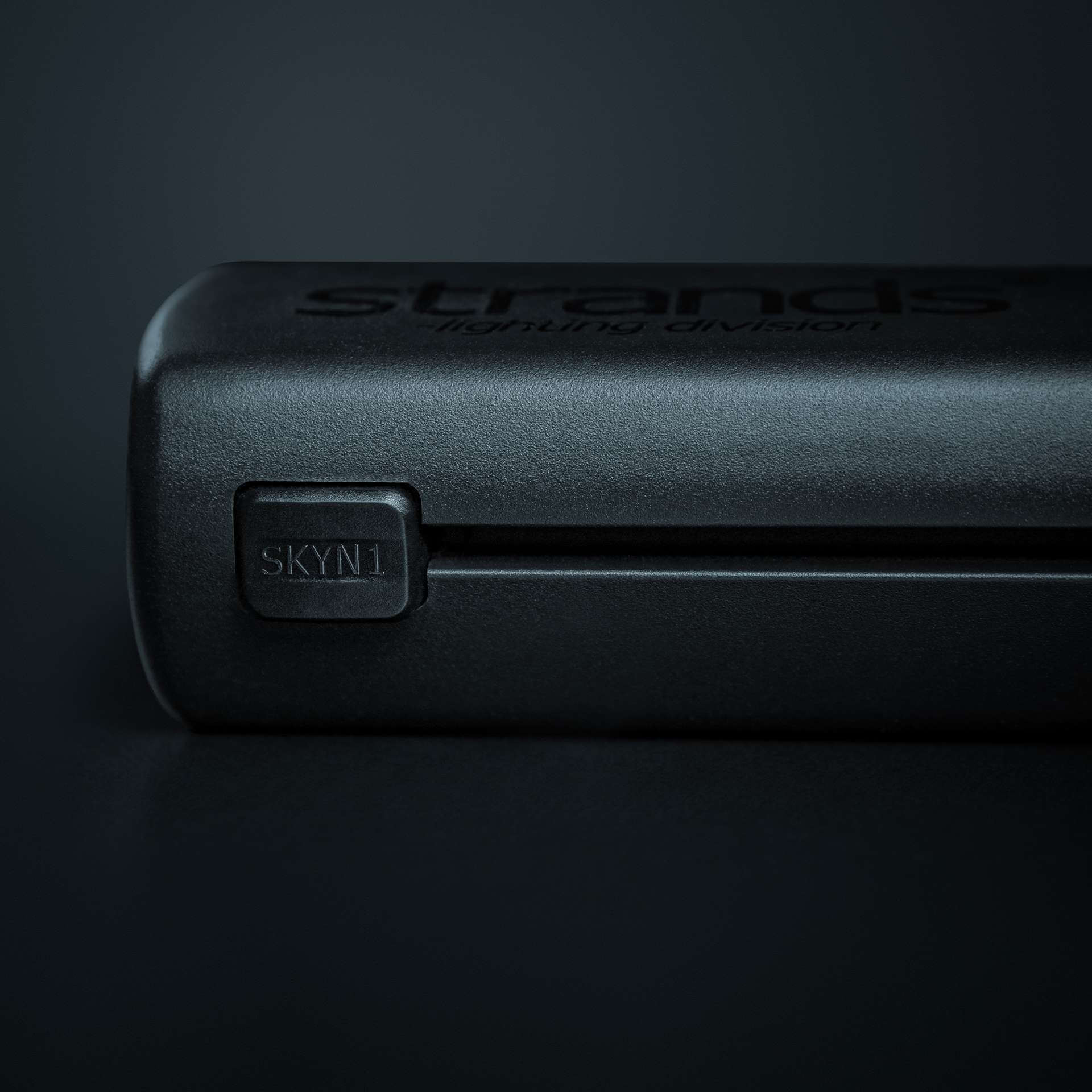

The robust aluminium housing with polycarbonate lens is IP68/69K rated and designed for an operating temperature range of -35°C to +60°C. Connection is via a 2,500 mm long cable, and the bar operates in a voltage range of 10-32 V DC.

The Skylord EXP LED Bar 10″ is E-approved (ECE R10.06, R148, R149, CE-RED) and compatible with the SKYN1 EXP Wireless Controller (Art. No. 907851S1).

Unit
PCS
Voltage (DC) (V DC)
10-32
Theoretical effect (W)
90
Consumption (W)
82
Functions
White position lightAmber position lightXperience modeE-approval mode
Consumption specific function
White position light 6WAmber position light 6WE-mode 37WX-mode 82W
Theoretical lumen (lm)
10800
Actual lumen (lm)
7800

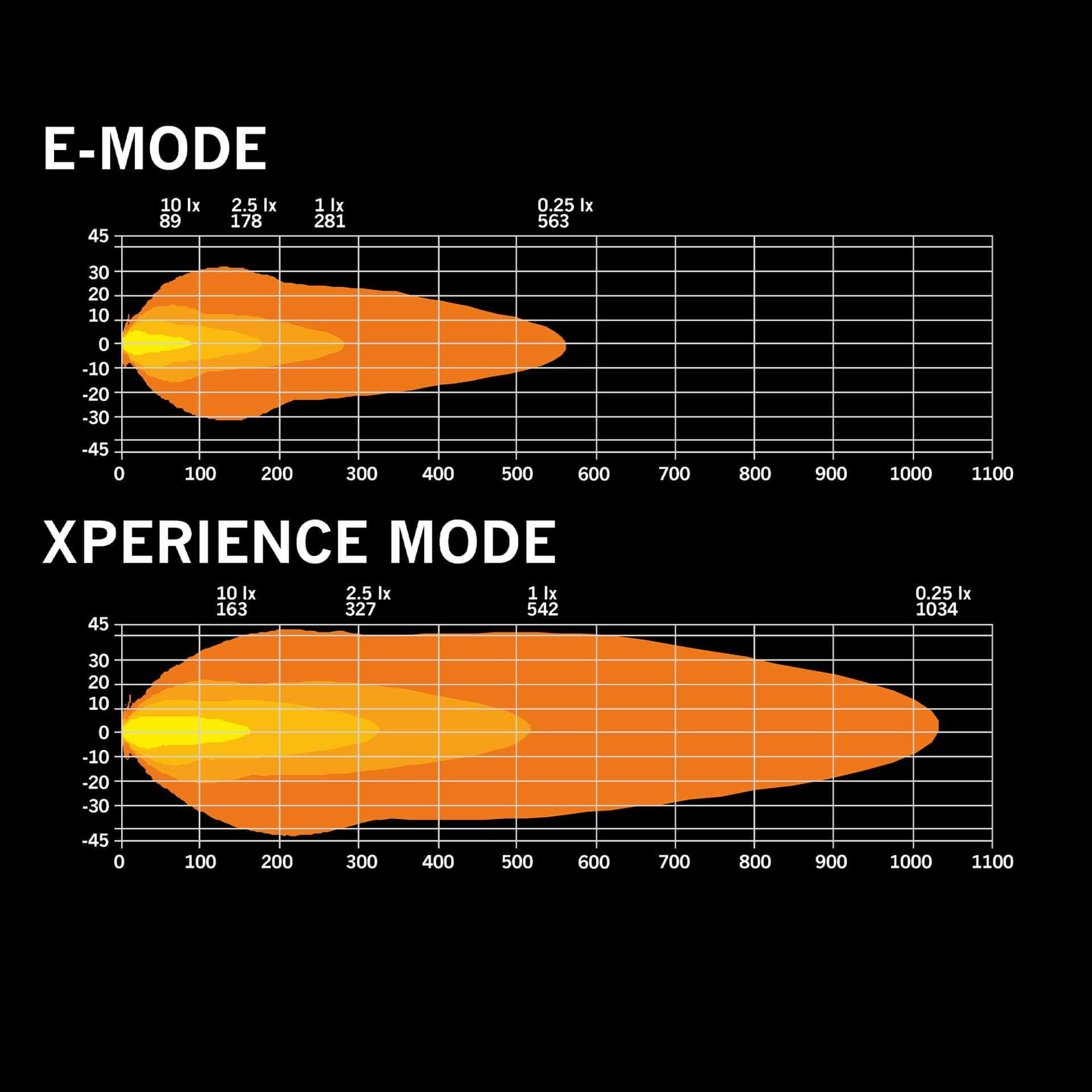

1 lux @ (m)
542
Color temperature (K)
5700
Beam pattern
Extended beam
Beam angle (°)
13.6
Connection
Cable
Cable length (mm)
2500
Color housing
Black
Color lens
Clear
Color LED's
White | Amber

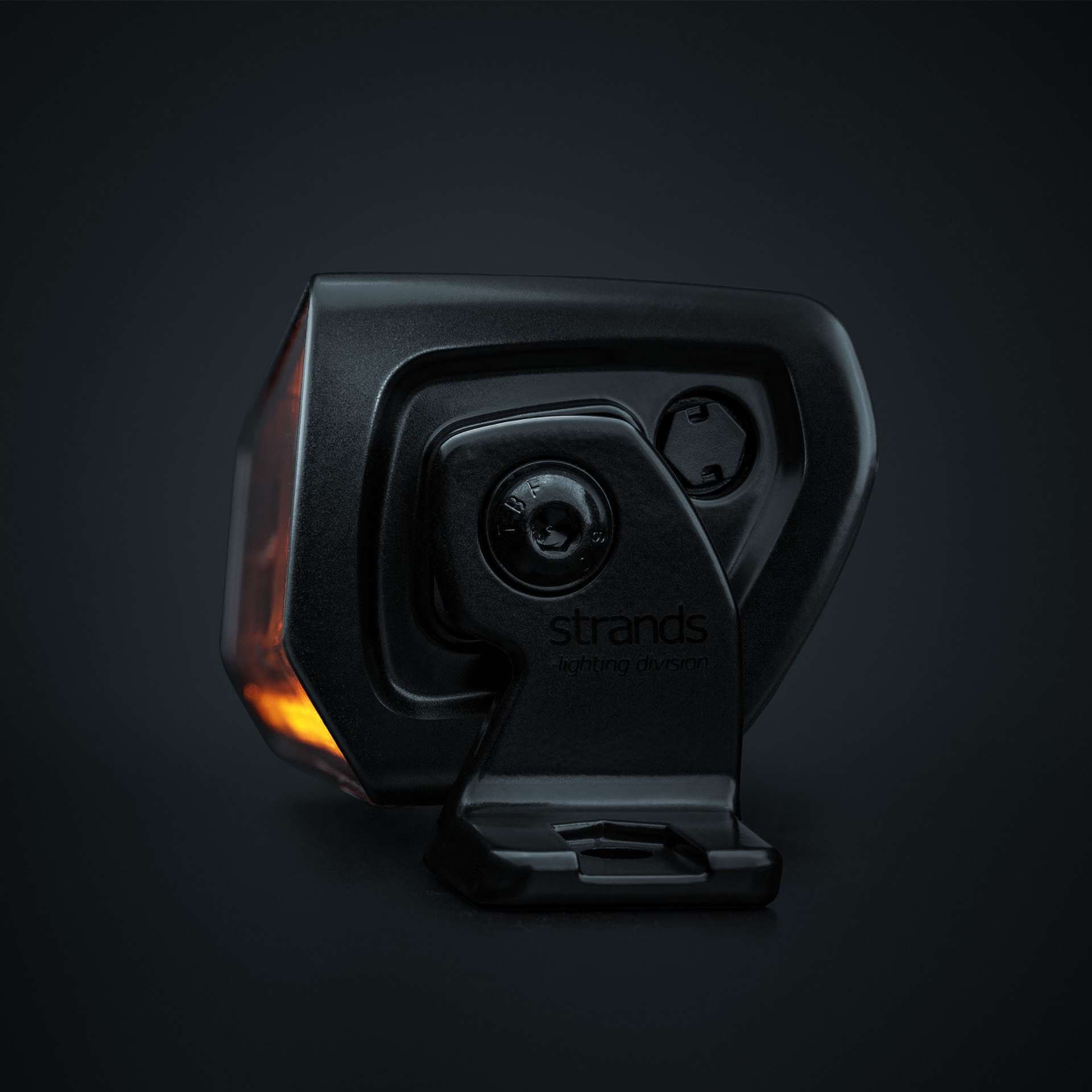

Material bracket
Aluminum alloy
Material housing/chassi
Aluminum
Material lens
Polycarbonate

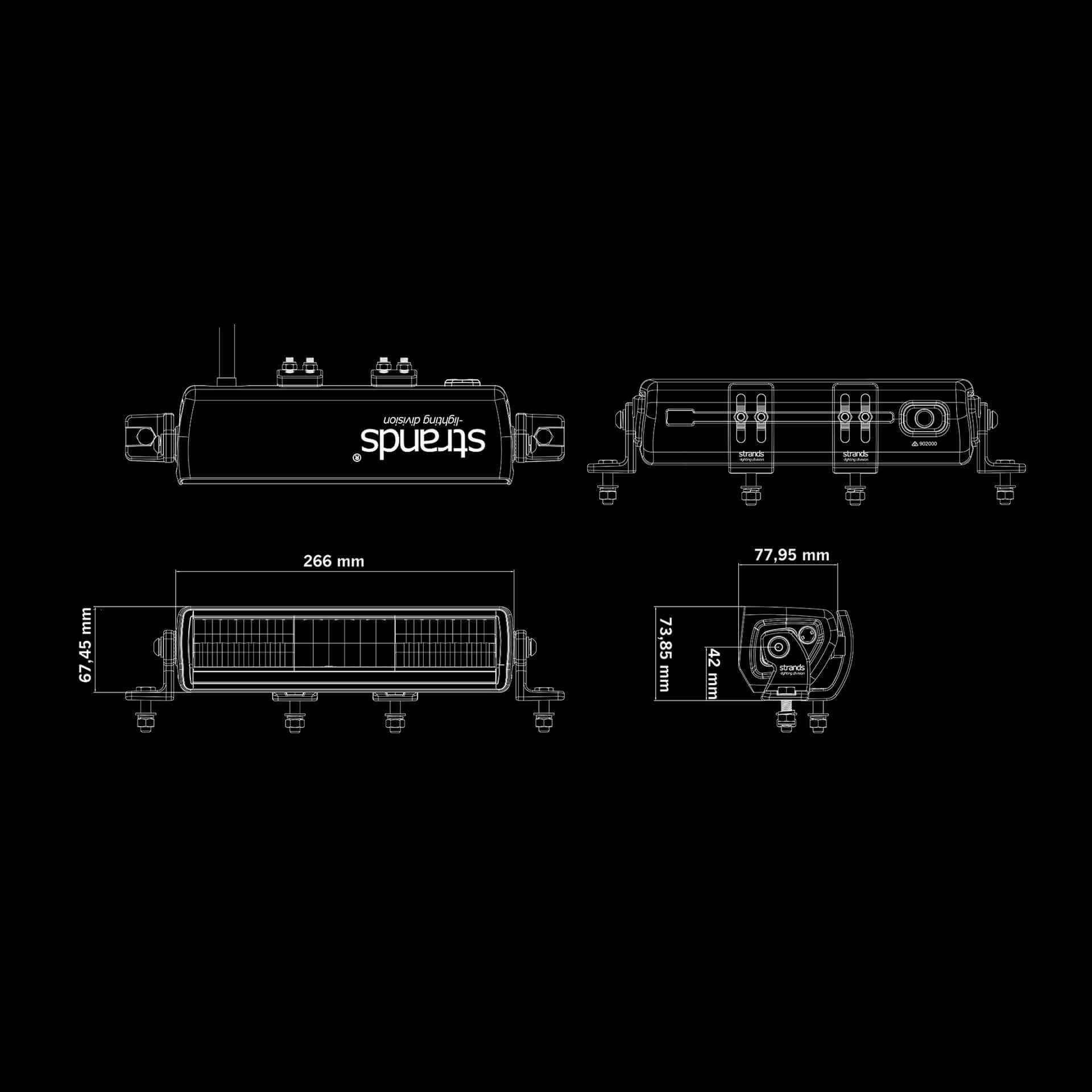

Length (mm)
266
Depth (mm)
78
Height (mm)
67.5
Height including bracket (mm)
73.9
Weight (kg)
2
IP-class
68/69K
Operating temperature (°C)
-35 - +60
E-approved
Yes
ECE approval
R10.06R148R149CE-RED
Reference number
20
Additional information
SIG Bluetooth; compatible with the SKYN1 EXP Wireless Controller (item no. 907851S1)

Cable assignment

Black
- (Negative)
Red
+ (Positive)
Grey
Signal cable to +VDC
