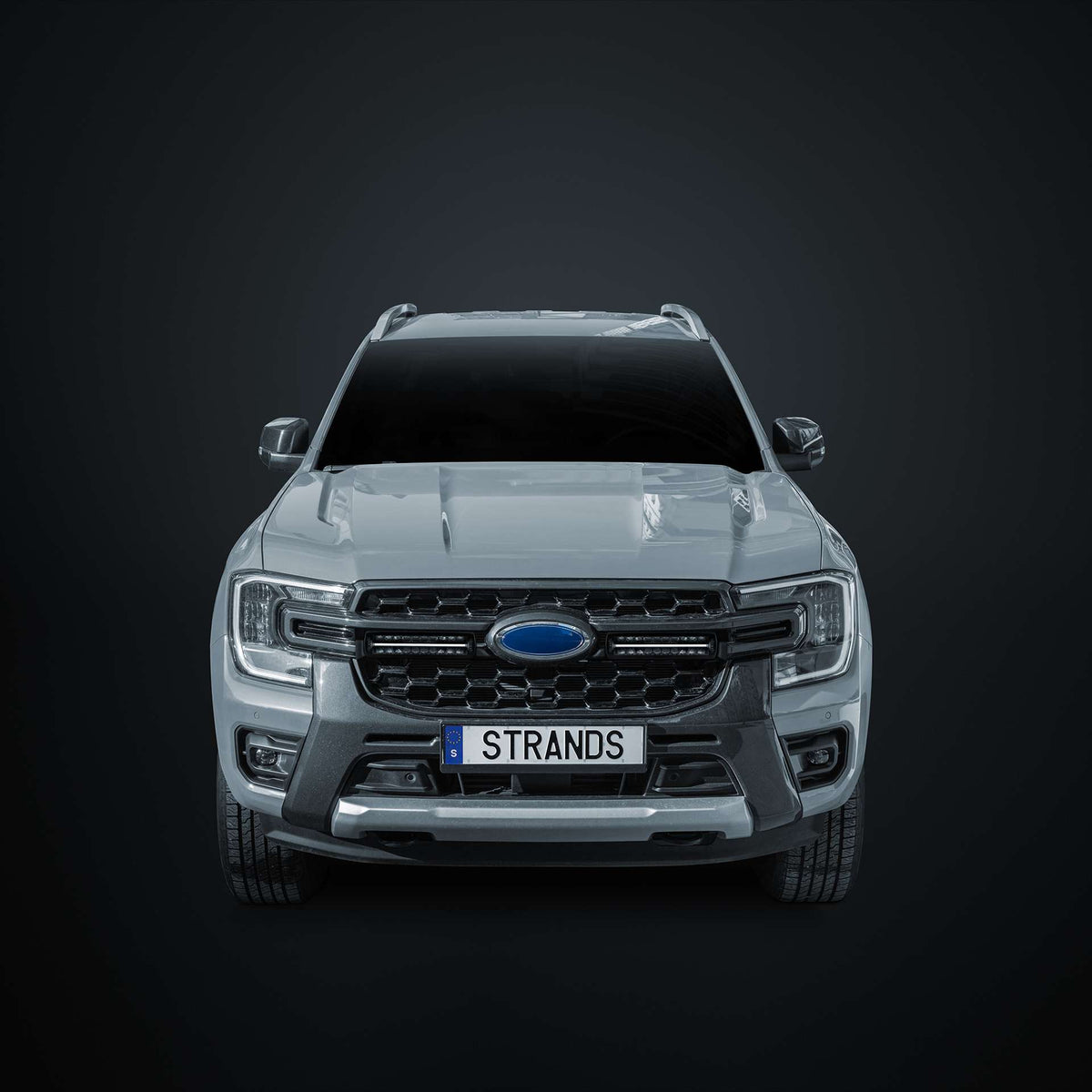

Strands Light Kit Ford Ranger Wildtrak – 2023 with Siberia XP DR 12”

Product highlights

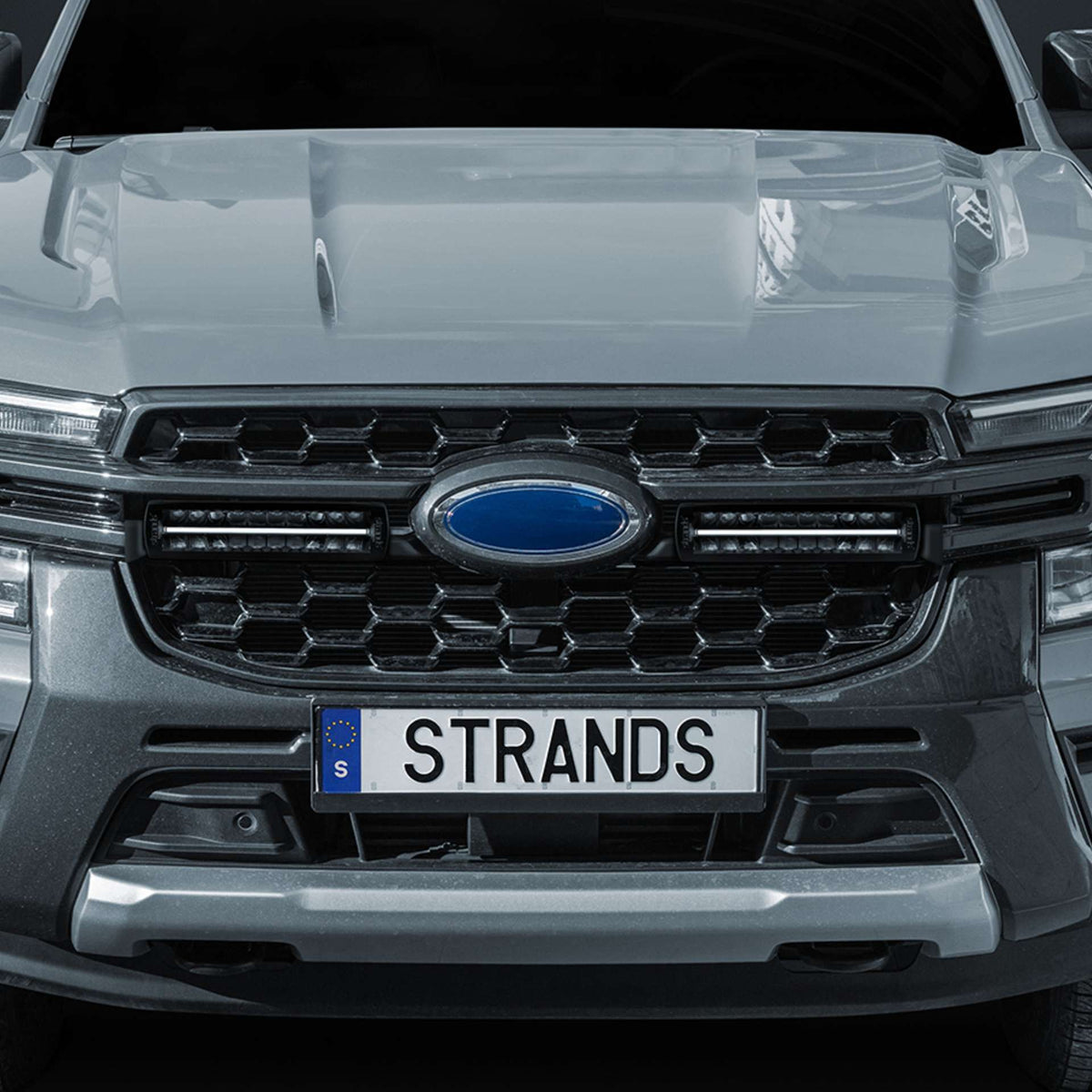

The Strands LED Light Kit has been developed specifically for the Ford Ranger Wildtrak from model year 2023. The kit fits seamlessly into the radiator grille and revolutionizes the nighttime driving experience. The wide light beam provides increased safety, and the strong beam range of 544 m significantly extends your field of vision. The kit also impresses with a modern, aesthetic design. The Swedish-made bracket ensures a secure and stable installation. The included plug-and-play wiring harness makes installation easy and guarantees reliable performance.

Technical details

The kit operates on 10-32 V DC, has a power consumption of 84 W and delivers an actual lumen output of 6120 lm. At 1 lux the range is 529 m, the color temperature is 5689 K and the beam angle is extended. The connection is via DT-4PIN.

The housing is black and the lens is clear. The bracket is made of stainless steel, the housing/chassis of aluminum and the lens of polycarbonate. The lights are 71.6 mm deep and 76 mm high, 89 mm including the bracket, and the kit weighs 5.346 kg.

It has an IP67/69K protection rating, is designed for operating temperatures from -30 to +65 °C and is approved according to ECE R148(R7) and R149(R112) (reference number 20 x 2).

Note on compatibility with CAN-BUS systems

Many modern vehicles are equipped with CAN-BUS electronics. A special interface is therefore often required to correctly integrate retrofit lighting. Our standard solution does not include a CAN-BUS interface.

The Strands Lighting Division offers suitable CAN-BUS solutions to ensure full compatibility. Please check your vehicle's specifications or contact our customer service to find out whether you need an additional interface.
